Dreiphasige Sicherheitstransformatoren ET3o ** mit einer Leistung von 0,05 bis 16 kVA
Three-phase safety isolating transformers are assigned for supplying electric devices with safe voltage. In standard design, the transformers are adjusted to fastening by means of screwed angles. The windings terminals may be placed on one side only, or on both sides of a transformer. Upon request, the transformers may be assembled in enclosures with the protection degree of IP 23, IP 44 and IP 54.
ELHAND Transformatory reserves the right to introduce changes resulting from the continuous development of the offered products. It is possible to make a transformer in a different version after prior agreement.
Katalogkarte herunterladenProdukt für:
- Eisenbahnindustrie
- Öl- und Gasindustrie
- Bergbauindustrie
- Maritime Industrie
- Schwerindustrie
- Leistungselektronik
- Qualität der Elektrizität
- Erneuerbare Energiequellen
Detaillierte Informationen:
Design: | Safety isolating transformers produced in accordance with requirements of EN/IEC 61558-2-6 |
---|---|
Insulation class: | B(130ºC) - standard up to 5 kVA, F(155ºC) - standard above 5 kVA |
Climatic class /environmental class: |
C1/E0 - land design; C2/E1 - maritime design |
Ambient temperature: | 40°C |
Protection degree: | IP 00 |
Protection class: | I |
Frequency: | 50/60 Hz |
Vector group: | Dyn5 - standard |
Primary voltage: | up to 1000 V |
Secondary voltage: | up to 50 V |
Terminals: | screw terminal blocks with the cross section from from 4 mm2 up to 150 mm2 or copper bus bars |
Fastening: | by means of angles |
Technische Skizze
Design A for the power lower than 6,3 kVA |

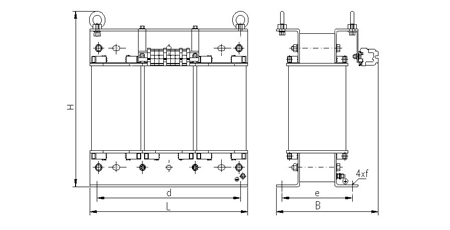

Design B for the power 6,3 kVA and more |
Dimensionstabelle
Technical data of three-phase safety isolating transformers ET3o **
Type | Power [kVA] |
L [mm] |
B [mm] |
H [mm] |
d [mm] |
e [mm] |
f [mm] |
Weight [kg] |
Design |
---|---|---|---|---|---|---|---|---|---|
ET3o_* - 0,05 | 0,05 | 100 | 60 | 122 | 81 | 41 | 5 x 8 | 1,4 | A |
ET3o_* - 0,15 | 0,15 | 125 | 71 | 140 | 100 | 55 | 5 x 8 | 2,6 | A |
ET3o_* - 0,3 | 0,3 | 155 | 91 | 156 | 130 | 71 | 8 x 12 | 5,1 | A |
ET3o_* - 0,5 | 0,5 | 195 | 102 | 185 | 173 | 82 | 8 x 11 | 7,5 | A |
ET3o_* - 0,63 | 0,63 | 195 | 112 | 185 | 173 | 92 | 8 x 11 | 9,5 | A |
ET3o_* - 0,8 | 0,8 | 195 | 112 | 185 | 173 | 92 | 8 x 11 | 10,5 | A |
ET3o_* - 1,0 | 1,0 | 210 | 105 | 200 | 173 | 85 | 8 x 11 | 12 | A |
ET3o_* - 1,5 | 1,5 | 240 | 131 | 226 | 198 | 105 | 11 x 15 | 16 | A |
ET3o_* - 2,0 | 2,0 | 240 | 146 | 226 | 198 | 120 | 11 x 15 | 22 | A |
ET3o_* - 2,5 | 2,5 | 261 | 140 | 239 | 198 | 114 | 11 x 15 | 26 | A |
ET3o_* - 3,0 | 3,0 | 300 | 152 | 274 | 240 | 122 | 11 x 15 | 30 | A |
ET3o_* - 4,0 | 4,0 | 300 | 165 | 274 | 240 | 135 | 11 x 15 | 38 | A |
ET3o_* - 5,0 | 5,0 | 300 | 192 | 274 | 240 | 160 | 11 x 15 | 49 | A |
ET3o_* - 6,3 | 6,3 | 360 | 230 | 365 | 310 | 125 | 11 x 15 | 47 | B |
ET3o_* - 7,5 | 7,5 | 360 | 237 | 365 | 310 | 132 | 11 x 15 | 54 | B |
ET3o_* - 8,0 | 8,0 | 360 | 247 | 365 | 310 | 142 | 11 x 15 | 60 | B |
ET3o_* - 10,0 | 10,0 | 360 | 270 | 365 | 310 | 162 | 11 x 15 | 71 | B |
ET3o_* - 12,5 | 12,5 | 420 | 255 | 425 | 370 | 158 | 11 x 15 | 82 | B |
ET3o_* - 15,0 | 15,0 | 420 | 265 | 425 | 370 | 168 | 11 x 15 | 91 | B |
ET3o_* - 16,0 | 16,0 | 420 | 265 | 425 | 370 | 168 | 11 x 15 | 92 | B |
*) - for transformer design with climatic/environmental class C2/E1 (maritime design W/3 or tropical design T/3) the letter "M" or "G" ought to be added depending on final application
**) - this table was prepared basing on the technical specification for transformer with voltage ratio 400//24 operating under normal conditions. For other conditions and data the values may change
Note:
Manufacturer reserves the right to make changes resulting from the continuous development of products offered.
If requested in advance, it is possible to manufacture transformer in other version.
