Oberwellenfilter zu 110kW

Oberwellenfilter zu 110kW

Function
Mitigation of harmonics caused by non-linear loads is vital procedure if it comes to energy cost reduction. ElhandHF™ Harmonic filter allows to utilize system power capacity to maximum degree, protects against shortened installation life and equipment malfunction. Due to compact design, filter can be easily integrated with existing system and is ready to use right after installation. Compensation of harmonics by filter application helps to comply with IEEE 519, EN-61000-3 or other energy quality standards.

Benefits Application
  • Lower input current RMS value
  • Lower power losses
  • Increased energy quality
  • Extended lifetime of another devices installed in the system
  • Bardzo niski prąd pojemnościowy w stanie bez obciążenia
  • Very low capacitive input current in no load state
  • Electric drives
  • 6-pulse rectifiers
  • Energy chargers
  • Systems sensitive to energy quality
  • Light and heavy industry
  • Marine equipment
  • Oil & Gas

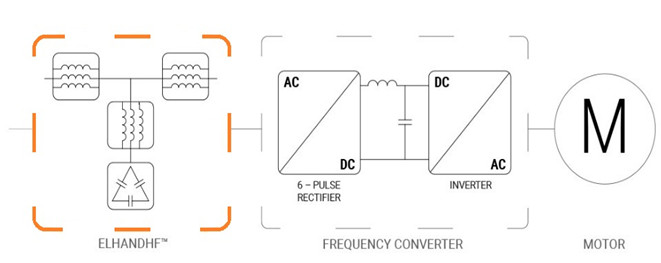

Typical application schematic

Special execution
Products with parameters exceeding the catalogue card can be made upon prior contact.

Katalogkarte herunterladen

Produkt für:

Detaillierte Informationen:

Rated power 2,2-110 kW
Rated voltage

380-415 V ± 10%

Rated frequency 50 Hz
THDi  according to IEEE 519
Overload capability 110% Pn (ciągła)
160% Pn 1 min/h (momentary)
Capacitive power consumption at no load ≤20% Pn
Max ambient temperature 40°C – land design
45°C – maritime design
≥50°C – heavy duty design
Insulation class F (2,2-75 kW, 155°C)
H (90-110 kW, 180°C)
Winding material copper
Standard equipment NC temperature switch
Mounting wall mounted
Degree of protection IP00, IP20
Standards compatibility PN-EN 60076-6

*- UL approved insulation system

Typical application schematic diagram
