Dreiphasen-Schutzdrossel

Dreiphasen-Schutzdrossel 14% (kapazitive Batterie-Nennspannung 480 V)

Chokes are assigned for operation in reactive power compensation systems to protect capacitive batteries. Together with capacitors, they form resonance systems which limit amplitude of harmonics currents.
It is possible to manufacture the chokes with various coil terminals like screw terminal blocks, cable lugs or copper bus bars, depending on the rated current. There is also a possibility to insert sensors in windings, in order to protect the chokes against overheating.

Produkt für:

• Schwerindustrie
• Leistungselektronik
• Qualität der Elektrizität

Detaillierte Informationen:

• Technische Daten
• Skizze und Maßtabelle
• Gehäuse

Design	Chokes are produced according to : EN/IEC 61558-2-20; EN/IEC 60938
Insulation class	F(155oC) - standard
Climatic class /environmental class	C1/E0 - land design; C2/E1 - maritime design
Ambient temperature	40oC
Protection degree	IP 00
Attenuation coefficient [p]	14% (fr=134 Hz)
Frequency	50 Hz
Rated voltage of capacitors	480 V
Rated supply voltage	400 V
Magnetic linearity	ILIN=1,15*In
Thermal current	1,06 x In



Technische Skizze

---

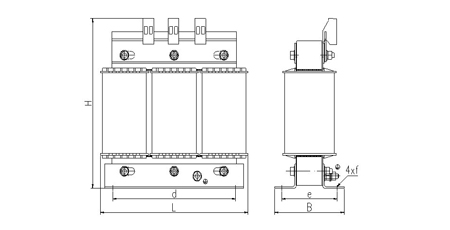

Design A

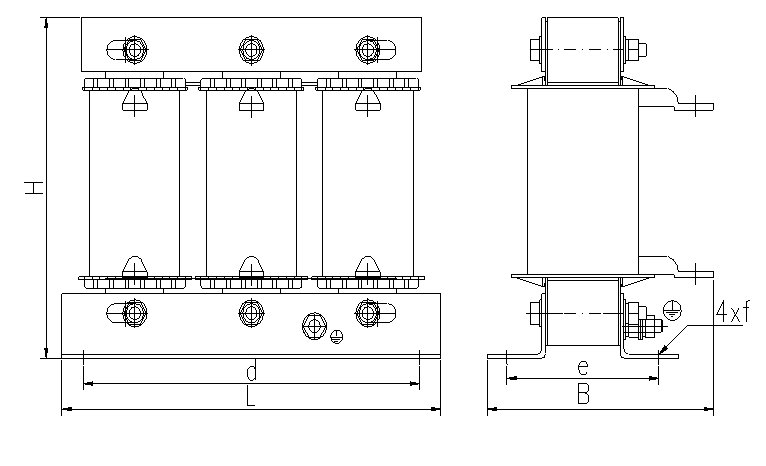

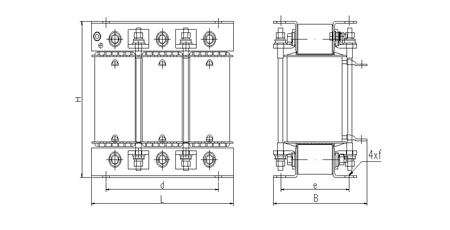

Design B



Dimensionstabelle

---

Technical data for rated voltage of capacitive battery 480 V

Type of the choke [QLC/ULC/p-Qc/UC]	Power of battery [kVAr]	LN [mH]	IN [A]	L [mm]	B [mm]	H [mm]	d [mm]	e [mm]	f [mm]	Weigh [kg]	Design
ED3F-2,0/400/14-2,5/480	2,5	41,07	2,9	155	80	160	130	57	8 x 12	3,3	A
ED3F-4,0/400/14-5/480	5	20,53	5,8	155	95	160	130	72	8 x 12	5,5	A
ED3F-8,1/400/14-10/480	10	10,27	11,7	208	100	210	173	78	8 x 11	9,3	A
ED3F-10,1/400/14-12,5/480	12,5	8,21	14,6	210	105	210	173	85	8 x 11	11	A
ED3F-12,1/400/14-15/480	15	6,84	17,5	210	120	210	173	95	8 x 11	13,3	A
ED3F-16,1/400/14-20/480	20	5,13	23,3	240	141	230	198	115	11 x 29	18,9	A
ED3F-20,2/400/14-25/480	25	4,11	29,1	240	175	210	198	129	11 x 29	22,5	B
ED3F-24,2/400/14-30/480	30	3,42	35	260	170	230	198	126	11 x 29	26,2	B
ED3F-32,3/400/14-40/480	40	2,57	46,6	300	170	270	240	133	11 x 15	32,8	B
ED3F-40,4/400/14-50/480	50	2,05	58,3	300	180	270	240	145	11 x 15	40,2	B
ED3F-48,4/400/14-60/480	60	1,71	69,9	360	170	310	300	131	11 x 21	46,5	B
ED3F-64,6/400/14-80/480	80	1,28	93,2	360	180	310	300	146	11 x 21	56,8	B
ED3F-80,7/400/14-100/480	100	1,03	117	420	225	360	370	166	11 x 21	82,4	B

QLC - rated reactive power of L_C circuit (choke-capacitor)
ULC - rated voltage of the L_C circuit
p - attenuation coefficient
Q_C - rated reactive power of the capacitive battery
UC - rated voltage of the capacitive battery
L_N - rated inductance of the protective choke
I_N - rated current of the L_C circuit

Note:

Manufacturer reserves the right to make changes resulting from the continuous development of products offered.

If requested in advance, it is possible to manufacture a choke in other version.

For designs with climatic/environmental class C2/E1 the letter "M" ought to be added

for horizontal mounting IP23

wall mounted IP23

for vertical mounting IP23

vertical design IP44

vertical design IP54
