Einphasige Mittelspannungs-Luftdrossel zur Reduzierung des Einschaltstroms von Kondensatorbatterien
Single-phase air-core reactors EDD are intended for work in indoor medium voltage compensation system. They limit the starting current during the start of the medium voltage capacitor bank, thus protecting the circuit elements from overload. The construction of the chokes enables natural air cooling and ensures a correct operation in horizontal and vertical position.
Produkt für:
Detaillierte Informationen:
| Design | According to EN/IEC 60076-6 standard |
|---|---|
| Inductance |
0,15 mH |
| Frequency |
50/60 Hz |
| Degree of protection | IP00 - (indoor) |
| Insulation class | T50B |
| Climatic/environmental class | C1/E0 |
| Insulation level | Um 7,2/LI60/AC20kV Um 12/LI75/28kV Um 24/LI125/50kV |
| Inductance tolerance | ± 10% |
| Ambient temperature | -25oC - + 50oC |
| Thermal current | 50, 75, 100, 150 or 200 A |
| Rated starting current | 25 x In |
| Type of duty | S1 |
| Cooling | AN |

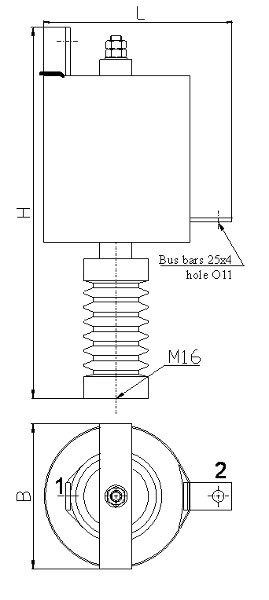

Technische Skizze
 |
Dimensionstabelle
Technical data for EDD inrush current damping reactors, 7,2 kV
| Type of the choke |
Inductance [mH] |
Current [A] |
L [mm] |
B [mm] |
H [mm] |
Mounting hole | Weight [kg] |
|
|---|---|---|---|---|---|---|---|---|
| 1 | EDD – 0,1/50 | 0,1 | 50 | 187 | 147 | 345 | M16 | 5,1 |
| 2 | EDD – 0,1/7 | 0,1 | 75 | 201 | 161 | 345 | M16 | 6,1 |
| 3 | EDD – 0,1/100 | 0,1 | 100 | 228 | 188 | 345 | M16 | 8,4 |
| 4 | EDD – 0,1/150 | 0,1 | 150 | 241 | 201 | 420 | M16 | 15 |
| 5 | EDD – 0,1/200 | 0,1 | 200 | 276 | 236 | 450 | M16 | 24 |
| 6 | EDD – 0,15/50 | 0,15 | 50 | 199 | 159 | 345 | M16 | 5,7 |
| 7 | EDD – 0,15/75 | 0,15 | 75 | 214 | 174 | 345 | M16 | 7 |
| 8 | EDD – 0,15/100 | 0,15 | 100 | 244 | 204 | 345 | M16 | 9,8 |
| 9 | EDD – 0,15/150 | 0,15 | 150 | 260 | 220 | 420 | M16 | 18 |
| 10 | EDD – 0,15/200 | 0,15 | 200 | 297 | 257 | 450 | M16 | 29 |
| 11 | EDD – 0,2/50 | 0,2 | 50 | 208 | 168 | 345 | M16 | 6,4 |
| 12 | EDD – 0,2/75 | 0,2 | 75 | 226 | 186 | 345 | M16 | 7,9 |
| 13 | EDD – 0,2/100 | 0,2 | 100 | 260 | 220 | 345 | M16 | 11,4 |
| 14 | EDD – 0,2/150 | 0,2 | 150 | 276 | 236 | 420 | M16 | 20,8 |
| 15 | EDD – 0,2/200 | 0,2 | 200 | 318 | 278 | 450 | M16 | 34,3 |
Technical data for EDD inrush current damping reactors, 12 kV
| Type of the choke |
Inductance [mH] |
Current [A] |
L [mm] |
B [mm] |
H [mm] |
Mounting hole [mm] |
Weight [kg] |
|
|---|---|---|---|---|---|---|---|---|
| 1 | EDD – 0,1/50 | 0,1 | 50 | 187 | 147 | 345 | M16 | 5,1 |
| 2 | EDD – 0,1/7 | 0,1 | 75 | 201 | 161 | 345 | M16 | 6,1 |
| 3 | EDD – 0,1/100 | 0,1 | 100 | 228 | 188 | 345 | M16 | 8,5 |
| 4 | EDD – 0,1/150 | 0,1 | 150 | 241 | 201 | 420 | M16 | 15 |
| 5 | EDD – 0,1/200 | 0,1 | 200 | 276 | 236 | 450 | M16 | 24,2 |
| 6 | EDD – 0,15/50 | 0,15 | 50 | 199 | 159 | 345 | M16 | 5,8 |
| 7 | EDD – 0,15/75 | 0,15 | 75 | 214 | 174 | 345 | M16 | 7,1 |
| 8 | EDD – 0,15/100 | 0,15 | 100 | 244 | 204 | 345 | M16 | 9,8 |
| 9 | EDD – 0,15/150 | 0,15 | 150 | 260 | 220 | 420 | M16 | 18 |
| 10 | EDD – 0,15/200 | 0,15 | 200 | 297 | 257 | 450 | M16 | 29,1 |
| 11 | EDD – 0,2/50 | 0,2 | 50 | 208 | 168 | 345 | M16 | 6,4 |
| 12 | EDD – 0,2/75 | 0,2 | 75 | 226 | 186 | 345 | M16 | 7,9 |
| 13 | EDD – 0,2/100 | 0,2 | 100 | 260 | 220 | 345 | M16 | 12,3 |
| 14 | EDD – 0,2/150 | 0,2 | 150 | 276 | 236 | 420 | M16 | 20,8 |
| 15 | EDD – 0,2/200 | 0,2 | 200 | 318 | 278 | 450 | M16 | 34,3 |
Technical data for EDD inrush current damping reactors, 17,5 kV
| Type of the choke |
Inductance [mH] |
Current [A] |
L [mm] |
B [mm] |
H [mm] |
Mounting hole [mm] |
Weight [kg] |
|
|---|---|---|---|---|---|---|---|---|
| 1 | EDD – 0,1/50 | 0,1 | 50 | 435 | 147 | 187 | M16 | 6,2 |
| 2 | EDD – 0,1/7 | 0,1 | 75 | 435 | 161 | 201 | M16 | 7,2 |
| 3 | EDD – 0,1/100 | 0,1 | 100 | 435 | 188 | 228 | M16 | 9,6 |
| 4 | EDD – 0,1/150 | 0,1 | 150 | 510 | 201 | 241 | M16 | 16,1 |
| 5 | EDD – 0,1/200 | 0,1 | 200 | 540 | 236 | 276 | M16 | 25,5 |
| 6 | EDD – 0,15/50 | 0,15 | 50 | 435 | 159 | 199 | M16 | 6,8 |
| 7 | EDD – 0,15/75 | 0,15 | 75 | 435 | 174 | 214 | M16 | 8,1 |
| 8 | EDD – 0,15/100 | 0,15 | 100 | 435 | 204 | 244 | M16 | 11,2 |
| 9 | EDD – 0,15/150 | 0,15 | 150 | 510 | 220 | 260 | M16 | 19,1 |
| 10 | EDD – 0,15/200 | 0,15 | 200 | 540 | 257 | 297 | M16 | 30,2 |
| 11 | EDD – 0,2/50 | 0,2 | 50 | 435 | 168 | 208 | M16 | 7,4 |
| 12 | EDD – 0,2/75 | 0,2 | 75 | 435 | 186 | 226 | M16 | 9 |
| 13 | EDD – 0,2/100 | 0,2 | 100 | 435 | 220 | 260 | M16 | 12,3 |
| 14 | EDD – 0,2/150 | 0,2 | 150 | 510 | 236 | 276 | M16 | 21,9 |
| 15 | EDD – 0,2/200 | 0,2 | 200 | 540 | 278 | 318 | M16 | 35,4 |
Technical data for EDD inrush current damping reactors, 24 kV
| Type of the choke |
Inductance [mH] |
Current [A] |
L [mm] |
B [mm] |
H [mm] |
Mounting hole [mm] |
Weight [kg] |
|
|---|---|---|---|---|---|---|---|---|
| 1 | EDD – 0,1/50 | 0,1 | 50 | 187 | 147 | 435 | M16 | 6,2 |
| 2 | EDD – 0,1/7 | 0,1 | 75 | 201 | 161 | 435 | M16 | 7,2 |
| 3 | EDD – 0,1/100 | 0,1 | 100 | 228 | 188 | 435 | M16 | 9,6 |
| 4 | EDD – 0,1/150 | 0,1 | 150 | 241 | 201 | 510 | M16 | 16,1 |
| 5 | EDD – 0,1/200 | 0,1 | 200 | 276 | 236 | 540 | M16 | 25,5 |
| 6 | EDD – 0,15/50 | 0,15 | 50 | 199 | 159 | 435 | M16 | 6,8 |
| 7 | EDD – 0,15/75 | 0,15 | 75 | 214 | 174 | 435 | M16 | 8,1 |
| 8 | EDD – 0,15/100 | 0,15 | 100 | 244 | 204 | 435 | M16 | 10,8 |
| 9 | EDD – 0,15/150 | 0,15 | 150 | 260 | 220 | 510 | M16 | 19,1 |
| 10 | EDD – 0,15/200 | 0,15 | 200 | 297 | 257 | 540 | M16 | 30,2 |
| 11 | EDD – 0,2/50 | 0,2 | 50 | 208 | 168 | 435 | M16 | 7,4 |
| 12 | EDD – 0,2/75 | 0,2 | 75 | 226 | 186 | 435 | M16 | 9 |
| 13 | EDD – 0,2/100 | 0,2 | 100 | 260 | 220 | 435 | M16 | 12,3 |
| 14 | EDD – 0,2/150 | 0,2 | 150 | 276 | 236 | 510 | M16 | 21,9 |
| 15 | EDD – 0,2/200 | 0,2 | 200 | 318 | 278 | 540 | M16 | 35,4 |
Note:
Manufacturer reserves the right to make changes resulting from the continuous development of products offered.
If requested in advance, it is possible to manufacture chokes in other version.
