Transformator mit Integrierter Drossel

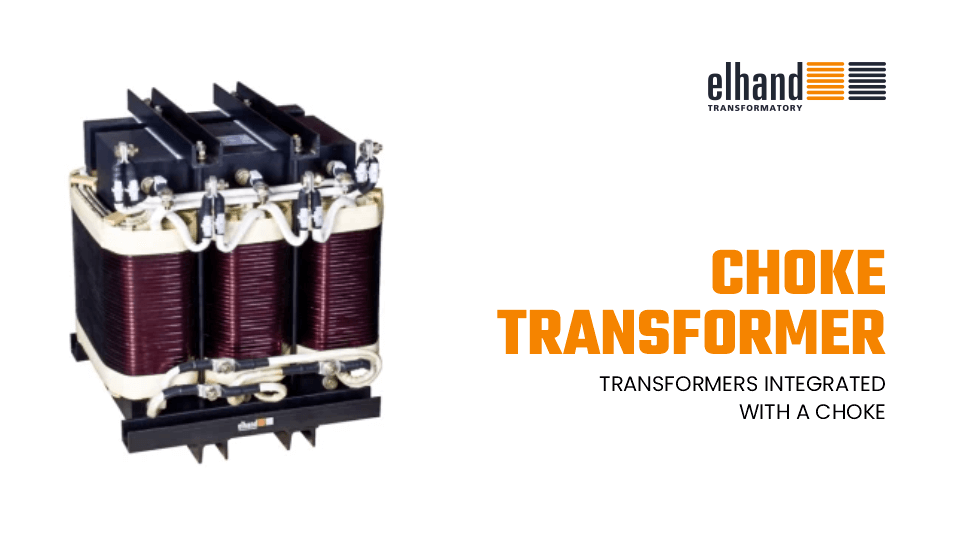

Transformers integrated with a choke are a compact combination of transformer and inductive element. Transformer part of this combination adjust the voltage value to the receiver requirement while the choke part effectively suppresses the disturbances. Transformer integrated with a choke is a component with high short circuit voltage.
Produkt für:
Detaillierte Informationen:
| Design | Transformers integrated with a choke are produced i accordance with requirements of standards: EN/IEC 61558-2-1; EN/IEC 60726 |
|---|---|
| Insulation class |
B(130oC) - standard up to 5 kVA; F(155oC) - standard above5 kVA |
| Climatic class / Environmental class |
C1/E0 - land design; C2/E1 - maritime design |
| Ambient temperature | 40oC |
| Protection degree | IP 00 |
| Protection class | I |
| Frequency | 50/60 Hz |
| Primary voltage | up to 1000 V |
| Secondary voltage | up to 1000 V |
| Terminals | screw terminal blocks or cable lugs or copper bus bars |
| Fastening | by means of angles |
Technische Skizze
 |
 |
 |
| Standard design | ||
Dimensionstabelle
Technical data of transformers integrated wtih choke typu ET3SD are to be agreed before ordering
Configuration of the housing determined according to individual customer needs. Please contact our sales department or fill out our inquiry form.
